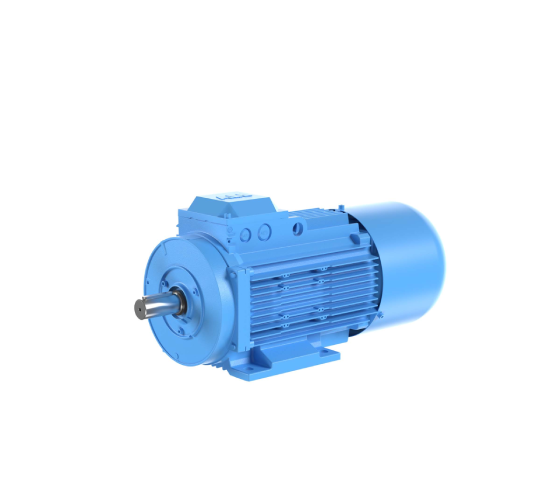

CG Power (Crompton Greaves) Brake Motors
Category : LV Motors
Brand: Crompton GreavesWe The Swastik Engineers are the Authorised Dealer of CG Power (Crompton Greaves) Brake Motors having range from 0.37 KW to 45 KW & 0.5 HP to 60 HP with DC Brakes. This motors are 3 phase with 415 volt & Frequency of 50 Hz. Crompton Brake motors are available in 1500 RPM, 1000 RPM & 750 RPM with respect to and 4 Pole, 6 Pole & 8 Pole with cast iron body. This motors are compatible with S1 & S4 duty. Available Frame sizes are from 80 to 225 frame. Mounting options are B3 (Foot Mounting) B5 (Flange Mounting), B35 (Foot cum Flange Mounting) available with Terminal Box Position at RHS Side. Crompton brake motors are available in insulation class F & temperature rise limited to Class B with IP 55 degree of protection. This motors are also available with specialties i.e. VPI / VFD Suitable, T.B Location: LHS / TOP.
| KW / HP | 0.37 To 45 KW (0.5 HP To 60 HP) |
|---|---|
| RPM / Pole | 1500 RPM (4 Pole) 1000 RPM (6 Pole) 750 RPM (8 Pole) |
| Frame Size | 80 To 225 |
| Mounting | B3 Foot Mounted B5 Flange Mounted B35 Foot cum Flange Mounted |
| Standard | IE2 |
| Ambient Temperature | 50 °C |
| Body Enclosure | Cast Iron |
| Duty | S1 / S4 |
| Enclosure | TEFC |
| Insulation class | F Class |
| IP degree of protection | IP55 |
| Phase | 3 Phase Motor |
| Brake Type | DC Brake |
| Terminal Box Location | RHS |
| Voltage | 415 V +-10% |
| Frequency | 50 Hz +-5% |
